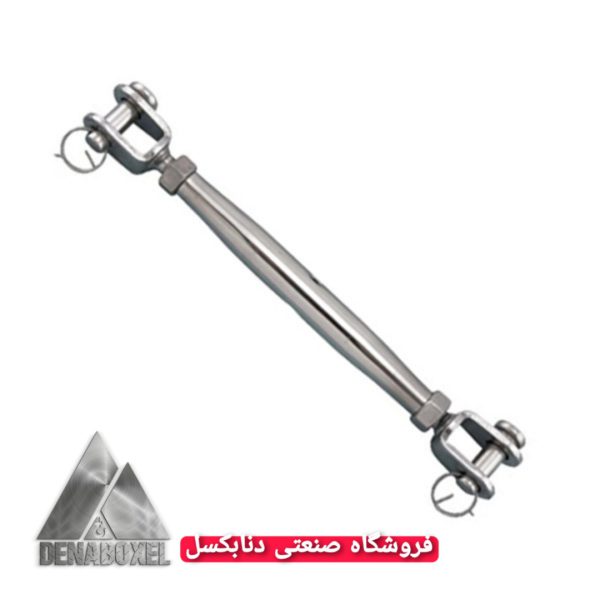

مشخصات فنی مهارکش لوله ای
| Part N° | End Type | WLL (t) | Tensioning Length | B | N | K | L | M | F | G | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4274-T22574 | Jaw/Jaw | 2.5 | 210 | 270 | 455 | 20 | 16 | 50 | – | – | – | 2.26 |
| 4274-T22575 | Jaw/Jaw | 5 | 250 | 340 | 570 | 28 | 22 | 65 | – | – | – | 4.78 |
| 4274-T22576 | Jaw/Jaw | 7 | 270 | 370 | 680 | 38 | 28 | 85 | – | – | – | 8.62 |
| 4274-T22577 | Jaw/Jaw | 10 | 300 | 420 | 790 | 45 | 32 | 100 | – | – | – | 15.5 |
| 4274-T22578 | Jaw/Jaw | 13 | 360 | 500 | 870 | 50 | 39 | 105 | – | – | – | 22.8 |
| 4274-T22579 | Jaw/Jaw | 17 | 450 | 600 | 1030 | 58 | 45 | 120 | – | – | – | 33.2 |
| 4274-T22580 | Jaw/Jaw | 27.2 | 600 | 800 | 1490 | 75 | 57 | 140 | – | – | – | 73 |
| 4274-T22581 | Jaw/Jaw | 34 | 600 | 800 | 1570 | 89 | 70 | 145 | – | – | – | 98 |
| 4274-T22582 | Jaw/Eye | 2.5 | 210 | 270 | 455 | 20 | 16 | 50 | 16 | 24 | 50 | 2 |
| 4274-T22583 | Jaw/Eye | 5 | 250 | 340 | 570 | 28 | 22 | 65 | 19 | 28 | 56 | 5 |
| 4274-T22584 | Jaw/Eye | 7 | 270 | 370 | 680 | 38 | 28 | 85 | 22 | 35 | 70 | 7 |
| 4274-T22585 | Jaw/Eye | 10 | 300 | 420 | 790 | 45 | 32 | 100 | 25 | 40 | 78 | 15 |
| 4274-T22586 | Jaw/Eye | 13 | 360 | 500 | 870 | 50 | 39 | 105 | 30 | 45 | 90 | 22 |
| 4274-T22587 | Jaw/Eye | 17 | 450 | 600 | 1030 | 58 | 45 | 120 | 35 | 45 | 100 | 30 |
| 4274-T22588 | Eye/Eye | 2.5 | 210 | 270 | 455 | – | – | – | 16 | 24 | 50 | 2 |
| 4274-T22589 | Eye/Eye | 5 | 250 | 340 | 570 | – | – | – | 19 | 28 | 56 | 5 |
| 4274-T22590 | Eye/Eye | 7 | 270 | 370 | 680 | – | – | – | 22 | 35 | 70 | 7 |
| 4274-T22591 | Eye/Eye | 10 | 300 | 420 | 790 | – | – | – | 25 | 40 | 78 | 14 |
| 4274-T22592 | Eye/Eye | 13 | 360 | 500 | 870 | – | – | – | 30 | 45 | 90 | 22 |
| 4274-T22593 | Eye/Eye | 17 | 450 | 600 | 1030 | – | – | – | 35 | 45 | 100 | 24.25 |
