مشخصات فنی مهارکش FORGED JAW & JAW

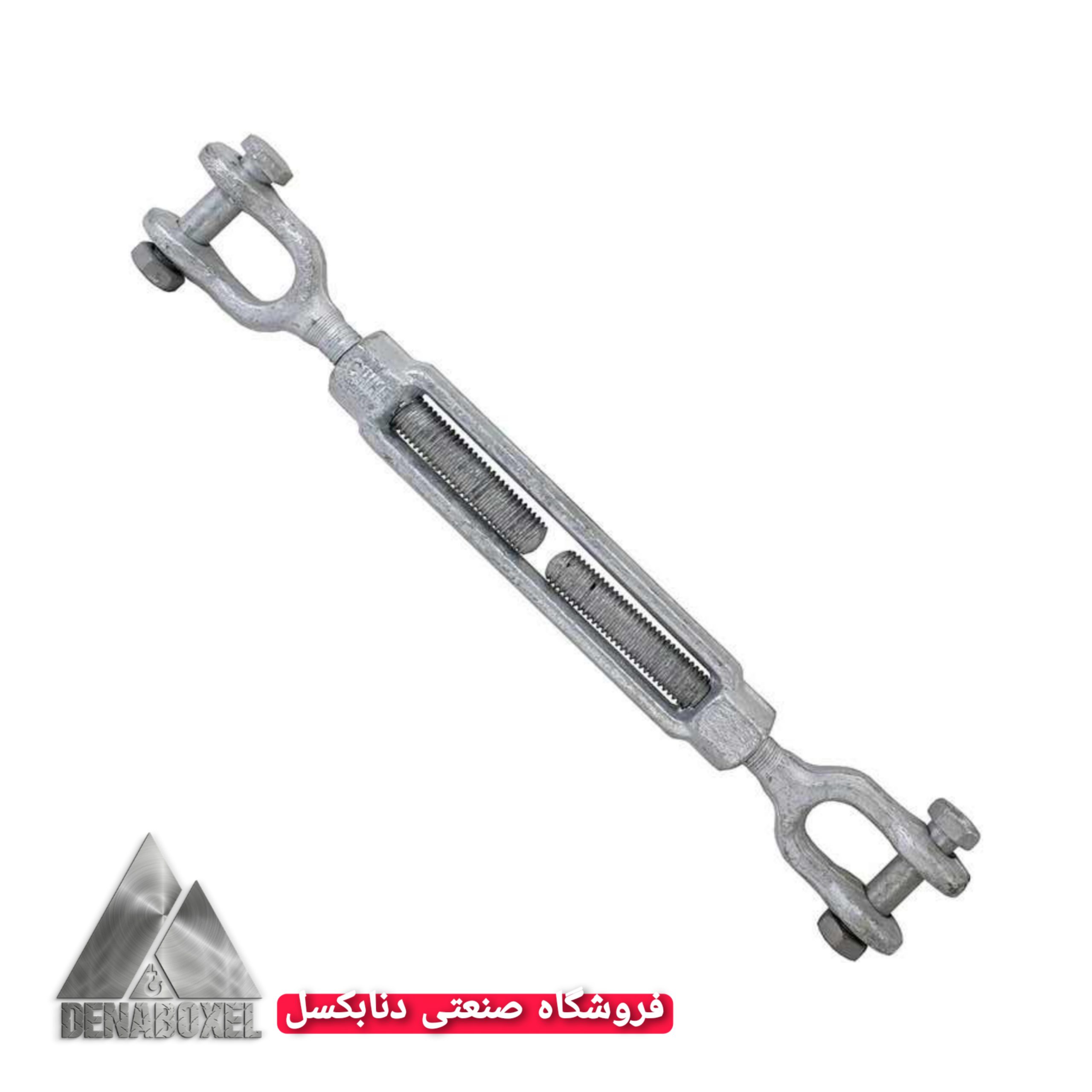

Our range of Crosby HG228 Jaw / Jaw Turnbuckles are manufactured with the end fittings quenched and tempered and the bodies are heat treated by normalizing, the finish is then hot Dip galvanized steel for corrosion resistance and long service life. Some times people refer to these are rigging screws
| Thread Diameter & Take Up (mm) | HG-228 Stock No. | Working Load Limit (t)* | Weight Each (kg) | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | E Closed | G | J Open | K Closed | M Open | N Closed | BB | ||||
| †6.35×102 | 1032493 | 0.23 | 0.17 | 6.35 | 11.4 | 42 | 16.1 | 284 | 183 | 309 | 208 | 103 |
| †7.94×114 | 1032518 | 0.36 | 0.25 | 7.94 | 12.7 | 51.2 | 22 | 332 | 218 | 359 | 244 | 116 |
| †9.53×152 | 1032536 | 0.54 | 0.39 | 9.53 | 13.5 | 53.5 | 21.5 | 413 | 260 | 445 | 292 | 155 |
| 12.7×152 | 1032554 | 1 | 0.83 | 12.7 | 16.3 | 81.8 | 27.1 | 474 | 321 | 512 | 359 | 153 |
| 12.7×229 | 1032572 | 1 | 1.04 | 12.7 | 16.3 | 81.3 | 27.1 | 633 | 405 | 671 | 443 | 238 |
| 12.7×305 | 1032590 | 1 | 1.23 | 12.7 | 16.3 | 81.3 | 27.1 | 786 | 481 | 824 | 519 | 314 |
| 15.9×152 | 1032616 | 1.59 | 1.46 | 15.9 | 20.1 | 99.1 | 33.5 | 501 | 349 | 554 | 402 | 153 |
| 15.9×229 | 1032634 | 1.59 | 1.79 | 15.9 | 20.1 | 98.8 | 33.5 | 662 | 434 | 715 | 487 | 239 |
| 15.9×305 | 1032652 | 1.59 | 2.08 | 15.9 | 20.1 | 98.8 | 33.5 | 815 | 510 | 868 | 563 | 315 |
| 19.1×152 | 1032670 | 2.36 | 2.18 | 19.1 | 24.6 | 120 | 38.5 | 536 | 383 | 601 | 449 | 156 |
| 19.1×229 | 1032698 | 2.36 | 2.65 | 19.1 | 24.6 | 119 | 38.5 | 698 | 470 | 764 | 535 | 244 |
| 19.1×305 | 1032714 | 2.36 | 3.05 | 19.1 | 24.6 | 119 | 38.5 | 851 | 546 | 916 | 612 | 320 |
| 19.1×457 | 1032732 | 2.36 | 3.83 | 19.1 | 24.6 | 120 | 38.5 | 1155 | 698 | 1221 | 764 | 471 |
| 22.2×305 | 1032750 | 3.27 | 4.25 | 22.2 | 29.5 | 140 | 44.8 | 880 | 575 | 956 | 651 | 309 |
| 22.2×457 | 1032778 | 3.27 | 5.34 | 22.2 | 29.5 | 140 | 44.8 | 1197 | 740 | 1272 | 815 | 473 |
| 25.4×152 | 1032796 | 4.54 | 4.74 | 25.4 | 34 | 155 | 52.1 | 605 | 453 | 690 | 538 | 157 |
| 25.4×305 | 1032812 | 4.54 | 6.25 | 25.4 | 34 | 155 | 52.1 | 910 | 605 | 995 | 690 | 309 |
| 25.4×457 | 1032830 | 4.54 | 7.77 | 25.4 | 34 | 155 | 52.1 | 1215 | 757 | 1300 | 843 | 462 |
| 25.4×610 | 1032858 | 4.54 | 9.51 | 25.4 | 34 | 154 | 52.1 | 1535 | 925 | 1620 | 1010 | 631 |
| 31.8×305 | 1032876 | 6.89 | 9.94 | 31.8 | 46.7 | 205 | 71.5 | 1000 | 695 | 1107 | 802 | 306 |
| 31.8×457 | 1032894 | 6.89 | 11.7 | 31.8 | 46.7 | 205 | 71.5 | 1305 | 848 | 1412 | 955 | 459 |
| 31.8×610 | 1032910 | 6.89 | 13.5 | 31.8 | 46.7 | 205 | 71.5 | 1624 | 1014 | 1731 | 1121 | 625 |
| 38.1×305 | 1032938 | 9.71 | 14.8 | 38.1 | 52.3 | 227 | 71.4 | 1035 | 731 | 1160 | 855 | 313 |
| 38.1×457 | 1032956 | 9.71 | 17.2 | 38.1 | 52.3 | 227 | 71.4 | 1340 | 883 | 1465 | 1008 | 465 |
| 38.1×610 | 1032974 | 9.71 | 19.7 | 38.1 | 52.3 | 227 | 71.4 | 1661 | 1051 | 1786 | 1176 | 633 |
| 44.5×457 | 1033018 | 12.7 | 24.3 | 44.5 | 66 | 238 | 85 | 1355 | 898 | 1503 | 1045 | 467 |
| 44.5×610 | 1033036 | 12.7 | 27.7 | 44.5 | 66 | 238 | 85 | 1660 | 1050 | 1807 | 1198 | 619 |
| 51.0×610 | 1033054 | 16.8 | 43.7 | 50.8 | 66.5 | 300 | 95 | 1769 | 1159 | 1949 | 1339 | 622 |
| 63.5×610 | 1033072 | 27.2 | 75.9 | 63.5 | 77.7 | 337 | 113 | 1853 | 1244 | 2087 | 1478 | 625 |
| 70.0×610 | 1033090 | 34 | 90.1 | 69.9 | 93.7 | 379 | 106 | 1899 | 1289 | 2172 | 1562 | 626 |
