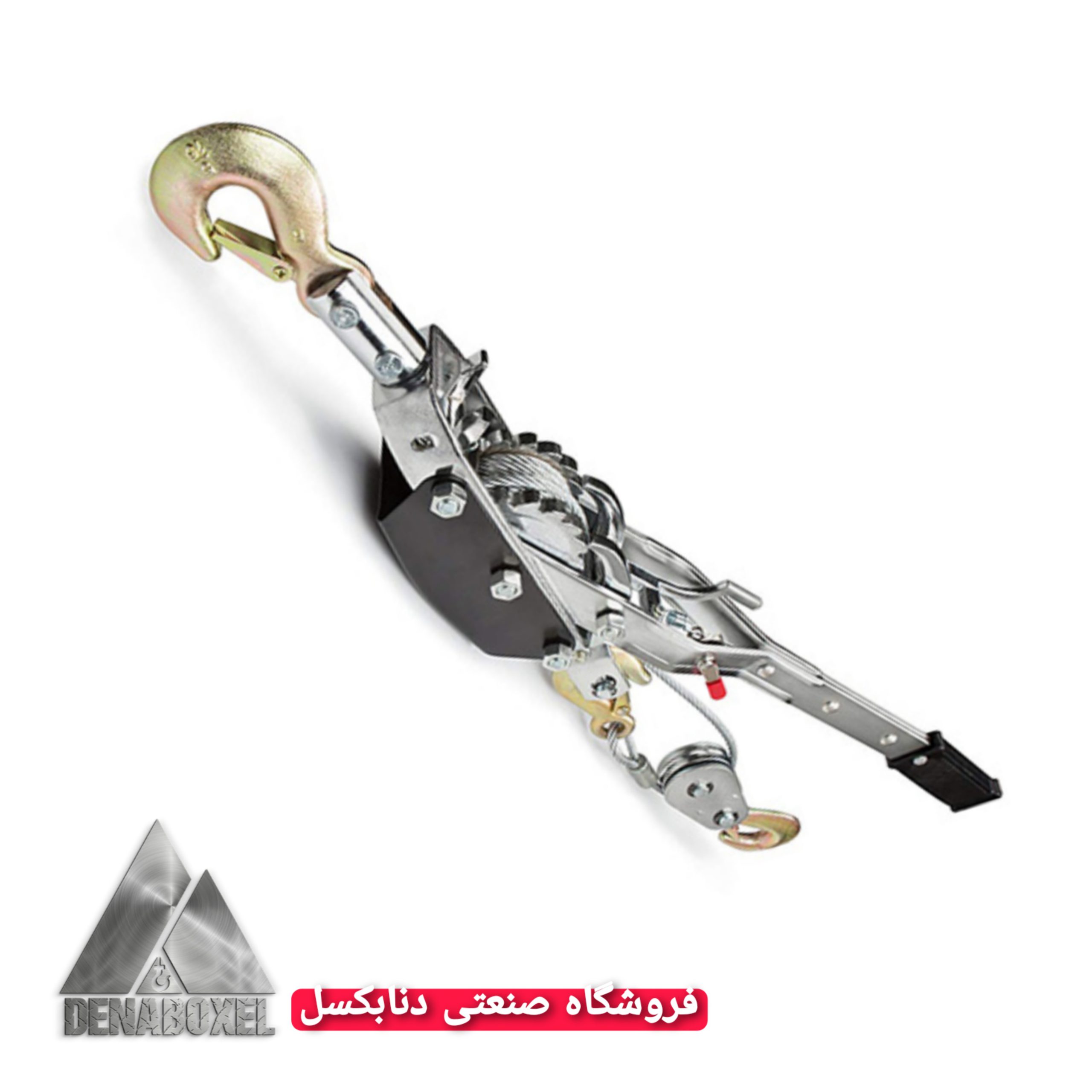

مشخصات فنی پولیفت سیم بکسلی
| Rated Lifting Capacity | Hauling Speed per Stroke/Cycle | Operational Effort at Rated Load | Steel Wire Diameter | Standard Cable Length | Cable Breaking Strain | Anchor Pin Diameter | Net Weight Winch only | Net Weight Wire Rope & Reel | Max Sizes LxWxH |
|---|---|---|---|---|---|---|---|---|---|
| 800kg | 60mm | 29kg | 8.4mm | 20m | 44.5kN | 22mm | 6kg | 7.5kg | 428x65x230mm |
| 1600kg | 69mm | 42kg | 11.6mm | 20m | 83.3kN | 25mm | 13kg | 12kg | 545x97x260mm |
| 3200kg | 40mm | 45kg | 16.1mm | 20m | 161kN | 30mm | 22kg | 25kg | 660x116x320mm |
| 5350kg | 30mm | 76kg | 20mm | 20m | 275kN | 40mm | 58kg | 38kg | 940x180x380mm |
